CQFP to FBGA Adapter Sockets
Reflow Profile
Since the reflow profile depends upon the size of the board and other components, you need to perform
250
Maximum package body
temperature = 220°C (±5°C)
220°C 30 seconds maximum
200
180°C
150
125
°C t
o1
80°C
1°C to 3°C
per second
1°C to 4°C
per second
100
50
120 seconds
minimum
Keep temperature above
183°C (solder melting point)
for at least 60 seconds.
0
50
100
150
200
250
300
1°C to 3°C
per second
Time (seconds)
Note: This temperature profile guideline is for reference only

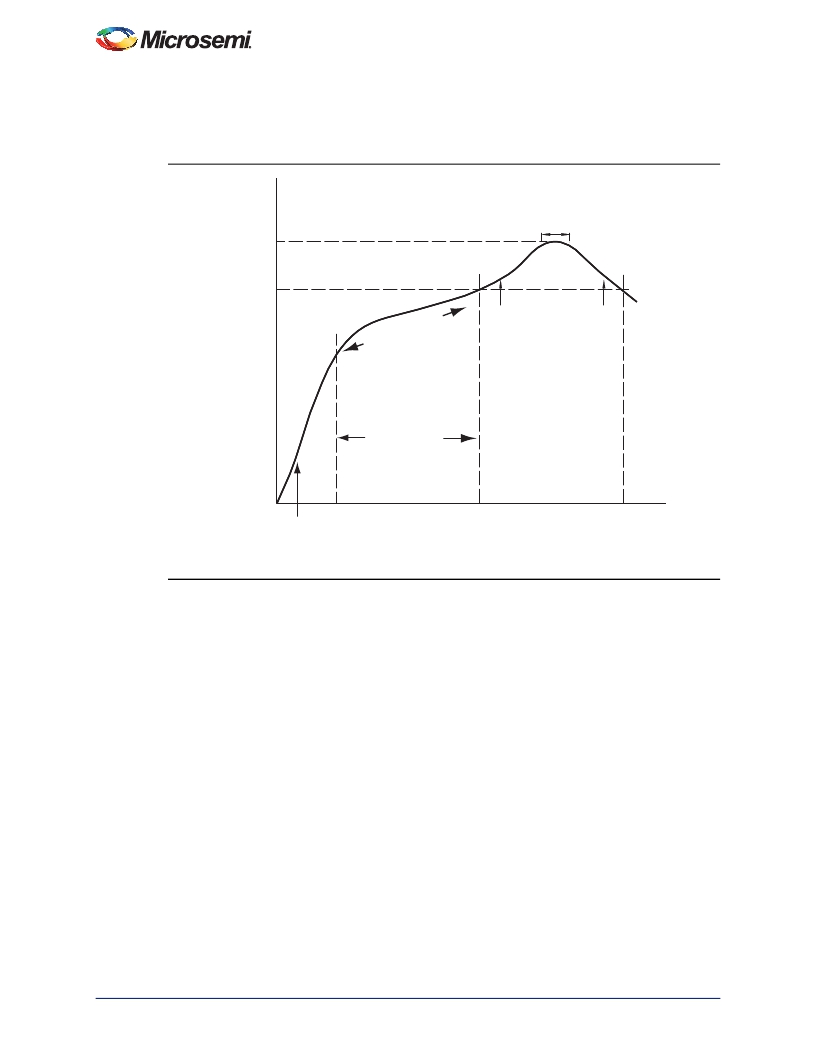

Figure 23 ? Sample Temperature Profile for I/R or Convection Reflow
Interposer Insertion Limitations
The prototyping adapter sockets are designed to enable the validation and functional testing of the user
FPGA designs on commercial devices before programming the design on the intended hermetic units.
The interposer is typically used for a limited number of insertions (no more than 25 insertions) per user
design/application. Additionally, the interposer is not intended for long term compression of the
commercial prototype unit. The maximum duration for which the interposer should remain compressed is
10 days per insertion. The prototyping adapter sockets can only withstand the temperature range of
–25oC to +125oC. In the event that the socket is used in ways that exceed the intended use model
(examples are temperatures exceeding 125oC, high current, long mating duration exceeding 10 days, or
a combination of all), there is a possibility of interposer damage or dislodging pins from the interposer, as
14
